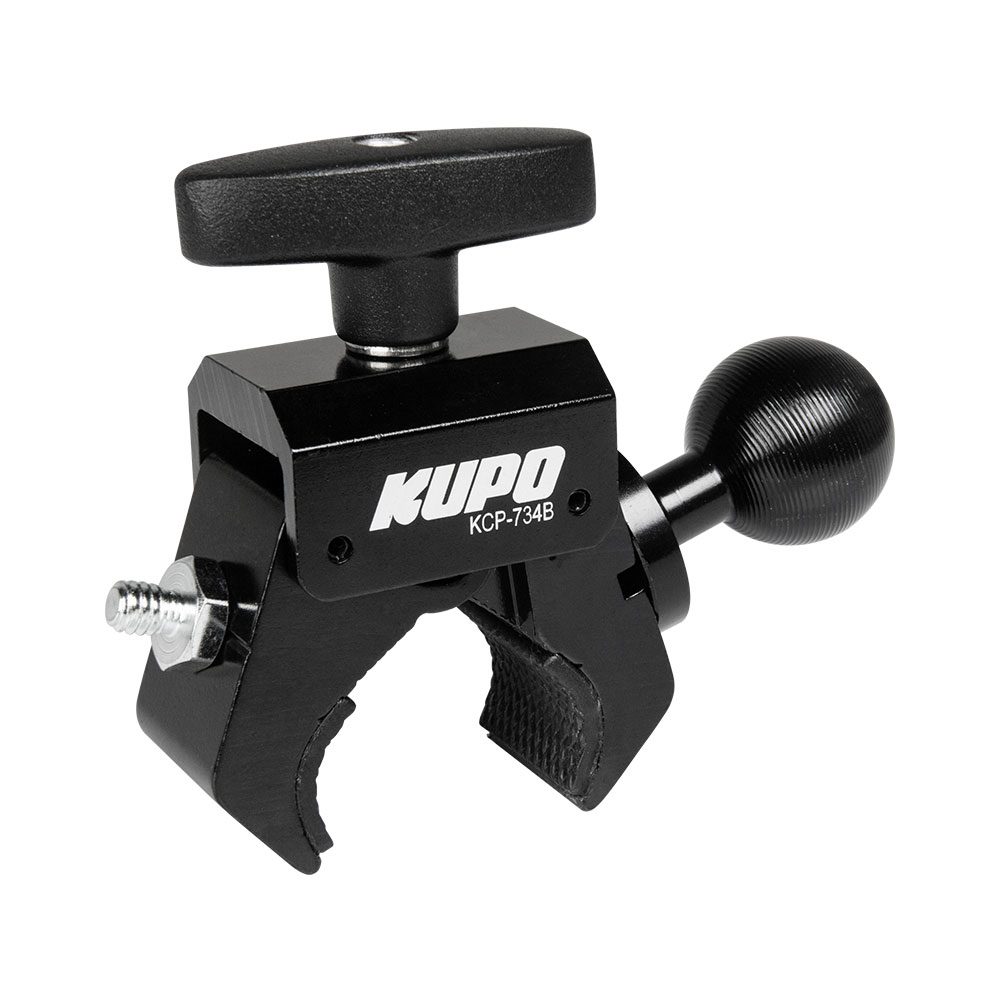

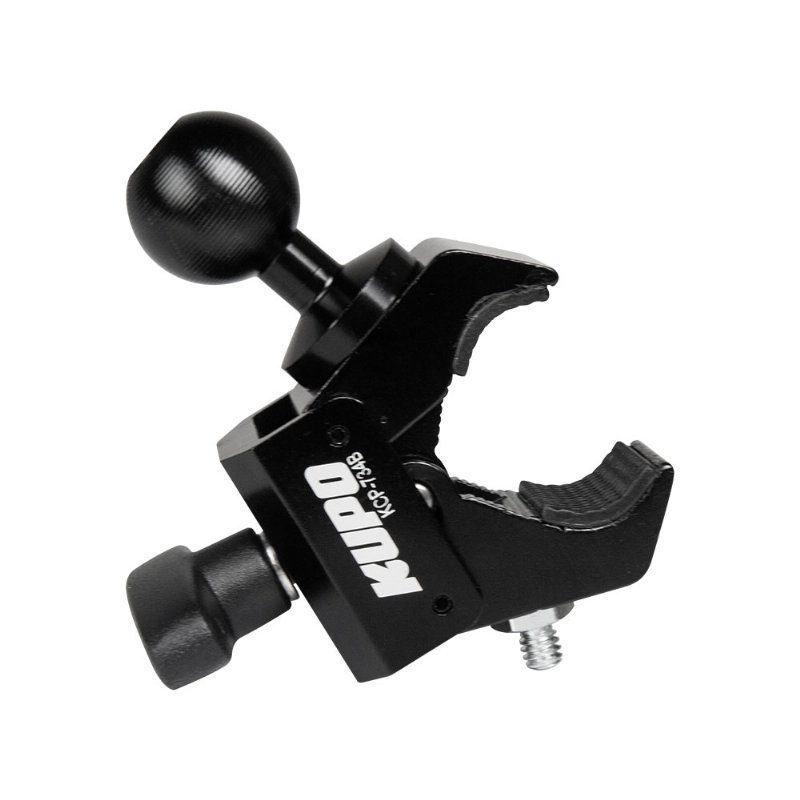

Kupo KCP-734B Super Claw Ball Head
Aluminum alloy clamp equipped with a ball head for connecting the super knuckle accessories. The adjustable jaws offer a great mounting solution for tube sizes from 13mm to 35mm, or a flat object from 5mm to 20mm.
Features
– Designed for Connecting with the Super Knuckle System
– Fit Tube Size: 0.51″- 1.37″/ Flat Tube Size: 0.91″- 0.78″
– 1/4″and 3/8″ Female Socket Can be Used Simultaneously
– Mechanical interlocking Design Makes The Rubber Pad Firmly Adhereon The Jaw
Super Knuckle
Super knuckle features double socket arm and ball head in each end which allows lock positively with centre knob offers an ultra-versatile solution for mounting and positioning. Constructed from aluminum alloy die-casting shell, ball heads and knob makes it sturdy and lightweight. The standard ball heads comes with a hex baby stud in one end and a 1/4’’-20 threaded stud on the other. Connecting with Convi clamp by baby hex stud offers brilliant mounting solution on any tube from 5-50mm and flat surface. The innovative design of socket and ball head offers the ability to interchange various components for a wide range of applications in industries including lighting, camera, monitors, tablets, smart phones and any mobile device. Overall length: 151mm (5.95”), Loading capacity: 8kg (17.6lbs)
Aluminum alloy clamp equipped with a ball head for connecting the super knuckle accessories. The adjustable jaws offer a great mounting solution which fitting for tube size from 13mm to 35mm or a flat object from 5 to 20mm.
Features of Super Knuckle
 | |||
| 1-2. Angle adjustable in all directions. | 3. KS-404: CNC machining aluminum ball head (Dia. 26mm) with black anodized surface treatment. | 4. 1/4’’-20 to 3/8’’-16 reducer is equipped. | 5. Exchangeable ball heads and double sockets offers an ultra-versatile mounting solution. |
