Name: Kupo 483T | 3 SCT Wind-Up Stand w/ Auto Self-Locking Device
SKU: 483T
Price: 22000.00 THB
Availability: InStock

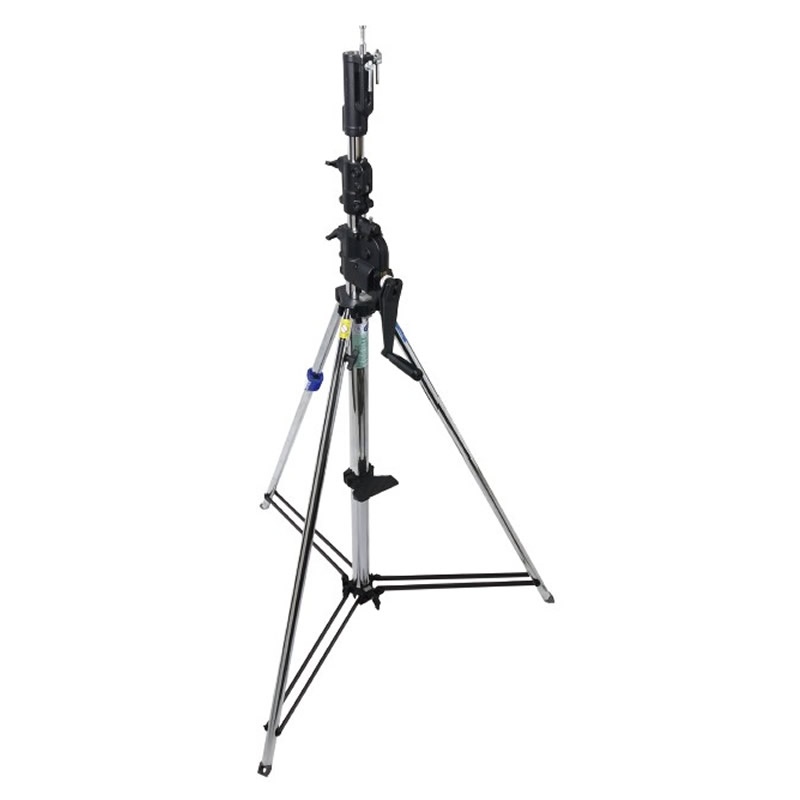

Kupo 483T 3 SCT Wind-Up Stand w/ Auto Self-Locking Device

Kupo wind-up stands are constructed with chrome plated steel and a geared column that enables a single operator to raise and lower heavy loads safely with just the turn of a handle. Both risers extend simultaneously at one elevation of 4.4cm per handle turn. The unique automatic self-locking mechanism is equipped to prevent the light stand from dropping unexpectedly making the operation safer. All metal parts are made of stainless steel making our wind-up stands more robust, sturdy, and with excellent resistance to corrosion.

Closed Length : 181 cm
Maximum Height : 380 cm
Minimum Operating Height : 172.5 cm
Weight : 22.8 kg
Footprint Diameter : 128 cm
Maximum Load : 30 kg
Stand Top : V (Triple function universal top head with both 1-1/8″ junior receiver (29mm) and 5/8″ baby receiver (16.2mm). Extra multi-direction 5/8″ baby stud (16mm))
Suggested Caster : KC-100

Features

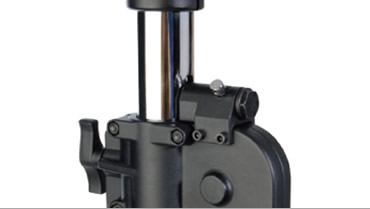

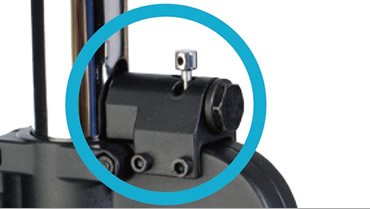

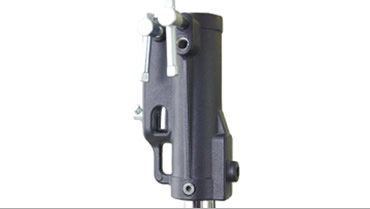

LOCK POSTION: The safety pin will auto insert to the holey tube when wind-up.	The stand top mounted by a steel bolt through the top tube that offers most sturdy and solid assembly.	UNLOCK POSITION The inside spring will bring the safety pin back.

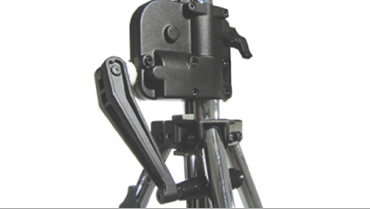

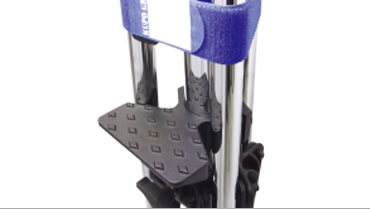

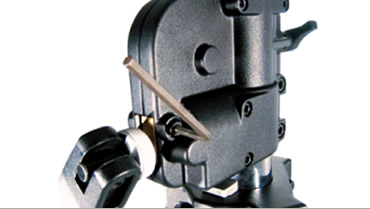

The crank handle folds back for travel. It also can be placed in between tripod legs to prevent the risers from falling accidentally if the lock is unexpectedly disengaged.	The tension of brake shoe can be adjusted with Allen wrench.	Velcro is supplied for better cable management.

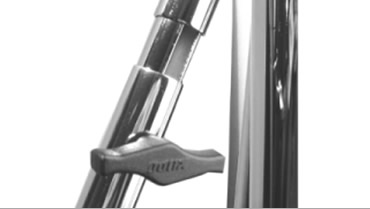

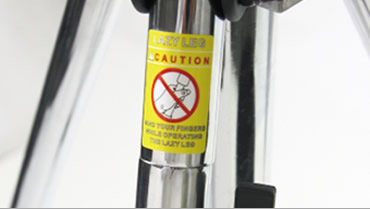

Top section tube can be adjusted by stepping on foot step.	By using the leveling leg the stand can be quickly leveled on uneven terrain.	Bright color warming sticker for safety operation.

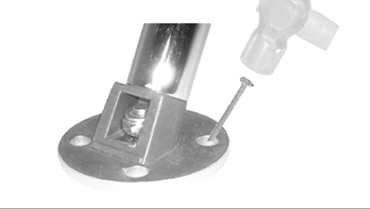

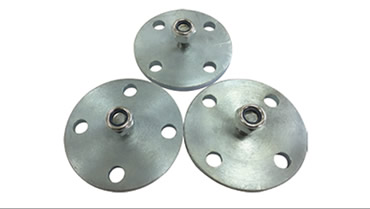

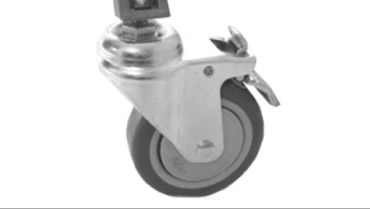

Casters are optional for easily moving the stand. The stand foot is rugged zinc-casting. Dia.: 100mm with brake and M10 attachment. A set is for three (KC-100).	483-BP Base Plate Optional accessory to be used where the stand has to be secured to the floor for safety reason.	Compatible with stand models: 481, 482, 483T and 470. (set of three)
