Name: Kupo 756M | Jumbo Stand w/ Braked Wheel
SKU: 756M
Price: 124000.00 THB
Availability: InStock

Kupo 756M | Jumbo Stand w/ Braked Wheel

฿124,000.00

– 4 risers, 5 sections
– Leg: 30 x 30 mm
– Chrome plated steel stand with braked wheels
– Dia. 90mm, 80mm, 70mm, 60mm, 50mm
– Wind bracing kit

– Closed Length : 2.3 m
– Maximum Height : 6.1 m
– Minimum Operating Height : 1.93 m
– Weight : 71 kg
– Footprint Diameter : 2.1 m
– Maximum Load : 70 kg
– Stand Top : UV
– Suggested Caster : KC-160S

Availability: In stock

Kupo 756M Jumbo Stand w/ Braked Wheel

The Kupo Jumbo Stand, made from chrome plated steel, is specifically designed to satisfy the industry’s requirement for extra heavy loads with the ultimate of safety in mind. The Kupo Jumbo Stand can support a load capacity up to 70kg (154lbs) and delivers a maximum working height of 6.1m (20′) when fully extended. Features Kupo’s direct drive gear mechanism and auto-locking instead of pullies and cables.

Features

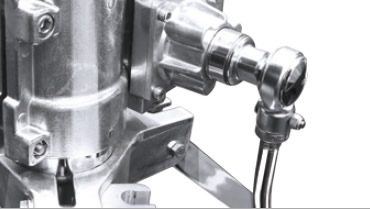

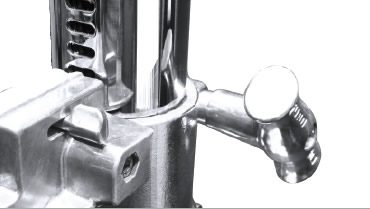

28mm ( 1-1/8”) junior receiver with 3 side hole for wind bracing kit.	Large size T-handle on each riser is ergonomically design for maximum torque.	Auto self-locking device prevents unintentional and uncontrolled lowering of the load.

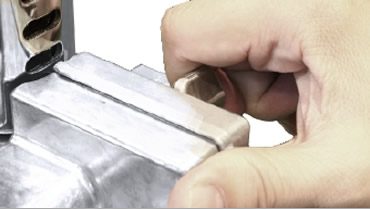

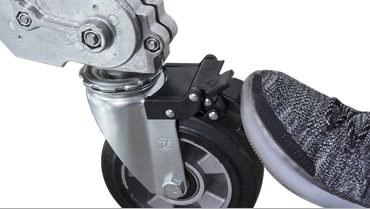

The detachable ratcheted crank handle prevents damage and reduces protrusions during transportation or storage.	Dual handle equipped on bottom spider casting for easily folding the base.	Industry 6” (152mm) braked caster included makes stand moveable in the studio or on location.

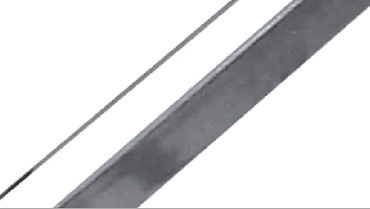

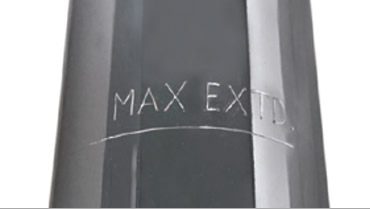

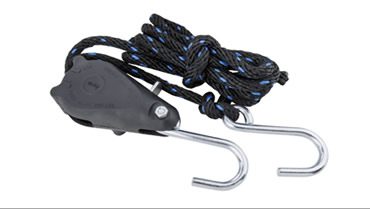

Leg brace is made of rectangular steel tubing (30x30mm) for maximum stability and safety.	Extension limit marking on each section	RS-RR3807 / Rope Ratchet Tie Down The rope is braided by polyester which is 3/8” (9.5mm) in diameter and 23’ (7M) in length.

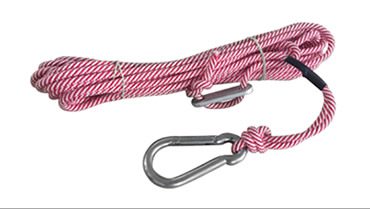

Dia.6mm x 10M nylon rope with stainless spring hook are included for attaching to the eyelets of stand to tether the top of stand to the ground (set of 3).
