Kupo KCP-866 | Nugget Coupler w/ 16mm Stud

Kupo KCP-866  Nugget Coupler w/ 16mm Stud

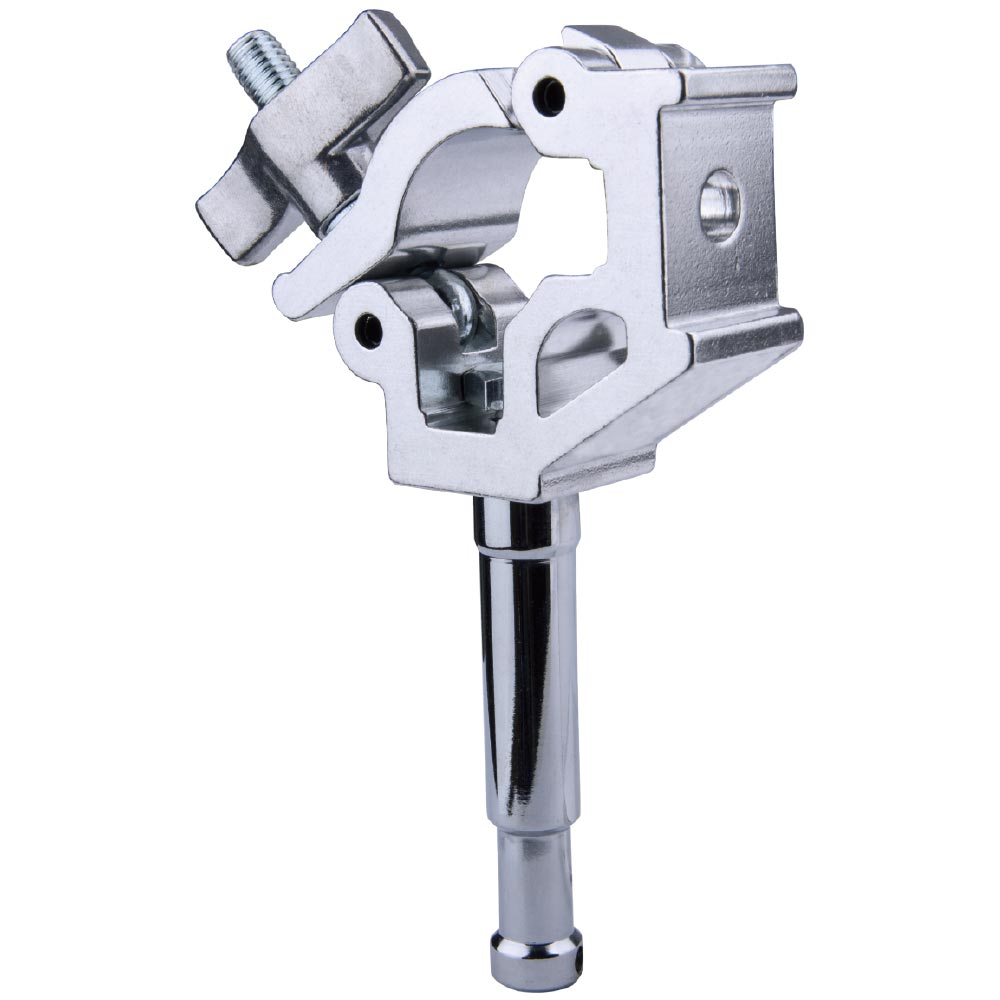

KUPO Nugget 16mm Stud Coupler (KCP-866) is constructed from high tensile aluminum extrusion with a 16mm Baby Stud. Heavy duty and working load limit is up to 100kgs (220lbs). For dia. 32-38mm (1.25″-1.5″) tube. A captive on top of thread bolt to avoid wing nut falling off the clamp. Equipped with a 16mm(5/8in) stud for lightweight luminaires or grip heads. Ideal for film, theater or TV studio.

Features

– 6061 T6 high tensile aluminum extrusion

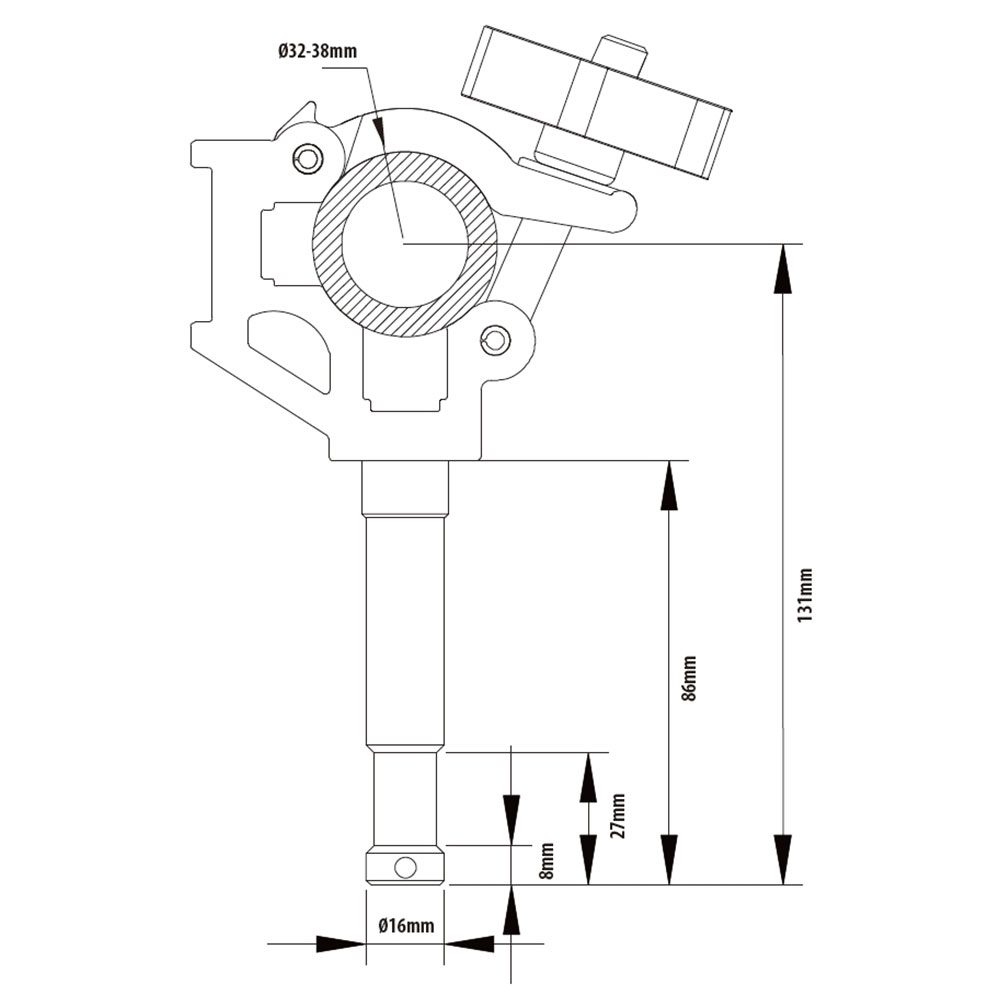

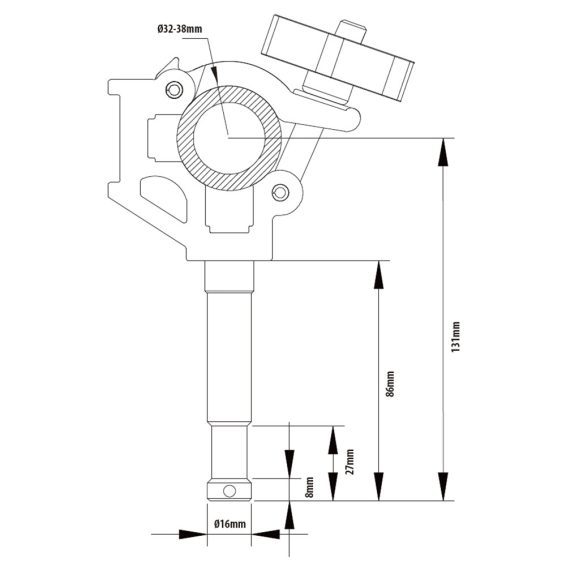

– Feasible for tube dia. 32~38mm (1.25″~1.5″)
– WLL up to 100kgs (220lbs)
– 16mm (5/8in) stud for lightweight luminaires or grip heads
– Ideal for film, theater or TV studio
– A captive on top of thread bolt to avoid wing nut falling off the clamp
